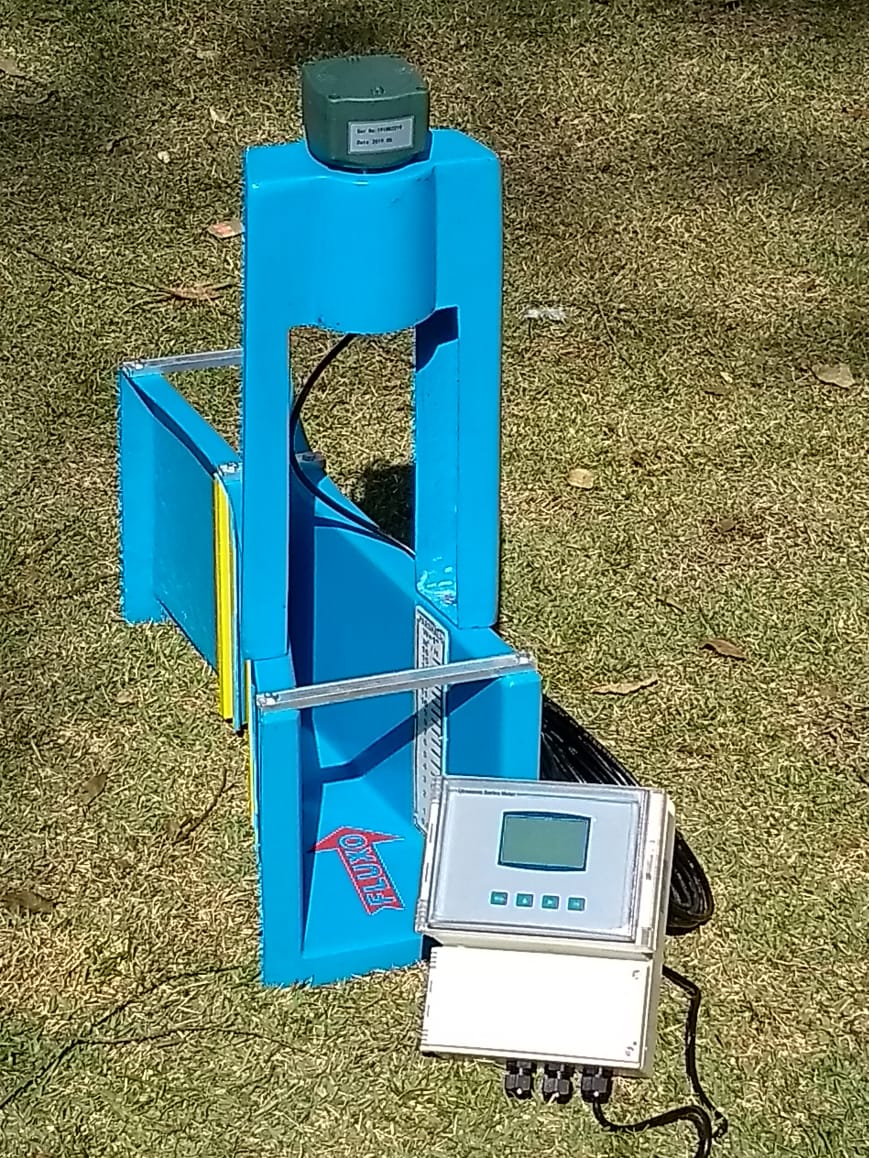

Ultrasonic flow meter for Parshall Gutter
Ultrasonic Flowmeter
Ultrasonic Flowmeter
UTILIZATION Measurement of continuous flow, without contact with the liquid It can be used to measure water intake, effluent discharge, irrigation and in other free flow conditions. MAIN FUNCTIONS OF THE ULTRASONIC FLOW METER FOR PARSHALL GUTTER It can measure instantaneous flow, indicate drained volume, liquid level, waveform etc; Data storage, automatic error correction function and data storage time for up to eight years. It allows to consult totalization in any period in the last eight years and to store daily, monthly and annual data. 4 ~ 20mA analog output for instantaneous flow, RS485 / ModBUS communication for instantaneous flow, drained volume and liquid level. Integrated temperature sensor offers real-time temperature compensation for the speed of sound. Internal clock integrated with the chip to display current date and time. 4 ~ 20mA simulation, RS485 diagnostic functions. Local indication on liquid crystal display and keyboard. Available languages: English and Chinese; selectable flow unit. Automatic detection of electrical disturbances with suppression of interference. Non-contact measurement and long service life.
